인장/압축시험기

▷ 인장/압축시험기 > Torque Meter/Gage > 캠회전력측정기(병뚜껑) CT 50





캠회전력측정기(병뚜껑) CT 50

모델명

:

 CT 50

판매가

:

전화문의원

소비자가격

:

0원

적립금

:

 0원

제조사

:

 MARK-10

원산지

:

 미국

수량

:

 EA

환율이나 공급사의 사정에 의해 변동 될 수 있으니 전화문의 바랍니다.

모든 상품은 부가세 별도입니다.

상품 상세 설명

*상기 판매가격은 환율 및 공급사 사정에 의하여 변동 되어질 수 있으니 전화문의 바랍니다.
측정범위: 1150Ncm (1150kgfmm) 까지가능
정밀도: +/- 0.5% of full scale, +/- 1 digit
Sampling rate: 30 redings/sec ( Hz)
무게:4.5kg

Ordering Information
Accuracy: ±0.5% of full scale ±1 digit
Sampling Rate: 30 readings/s
Display Rate: 2.5 updates/s in normal mode / 30 updates/s in peak mode
Power: AC or non-rechargeable 9V battery, with Intelligent Power Management System
(IPM). IPM warns the user via a “LO BAT” indicator and then will power off the gauge.
Battery Life: 30 hours of continuous use
Selectable units of measurement: lbFin, kgFmm, Ncm
Safe overload: 150% of full scale (display shows “----” at 110% and above)
Weight: 10 lb [4.5 kg]
Environmental Requirements: 40° F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Thermal effects: Zero: 0.03% of full scale/°C, Span: 0.01% of full scale/°C
Housing construction: 6061 aluminum
Warranty 3 years (see individual statement for further details)

CT12 12 x 0.01 lbFin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm, 110V
CT50 50 x 0.05 lbFin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm, 110V
CT100 100 x 0.1 lbFin, 1150 x 1 kgFmm, 1150 x 1 Ncm, 110V
CT001 Sample gripping jaws, pair
CTRS Outputs package for CT (RS-232 and Mitutoyo outputs)
For 220V operation, add suffix E to model number. Example: CT50E

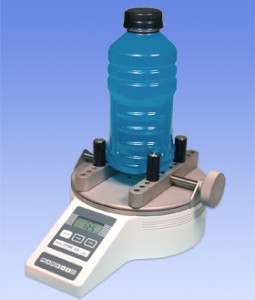

Series CTA Cap Torque Testers present a simple, accurate, and economical solution for manual cap torque testing.
These cap torque testers are ideal for lab or production use for closure manufacturers, bottlers, food and beverage
companies, and others. The cap torque tester captures peak readings for application and removal torques.
Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector.
Standard adjustable posts effectively grip a broad range of container shapes and sizes.
Optional flat jaws and adjustable jaws are available for unique samples.
Innovative mechanical overload protection provides peace of mind.
The CTA cap torque tester features an aluminum housing, rugged construction and close attention to engineering
you'd expect from Mark-10.



  • Measures in real time or peak torque modes
  • Captures peak readings for application and removal torques
  • Data output via RS-232 and Mitutoyo
  • Selectable units of measurement
  • Movable threaded sample gripping posts
  • Accepts samples up to 7.5" (189.4 mm) dia.
  • 3 torque capacities available
  • Operates on a 9V battery or AC adapter
  • Accuracy: ±0.5% of full scale ±1 digit
  • Safe overload: 150% of capacity
  • Weight: 6.5 lbs (2.9 kg)
  • Warranty: 3 years
  • CE mark
~
