*상기 판매가격은 환율 및 공급사 사정에 의하여 변동 되어질 수 있으니 전화문의 바랍니다.

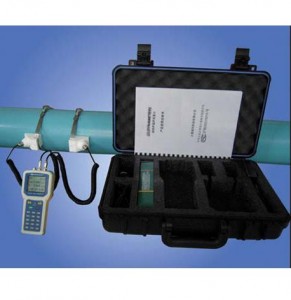

 모델명 : DMTFH-3-N-B/DH-M-N-S1/DH-L-N-S1

Transmitter	Power Supply	3 AAA Ni-H built-in batteries. When fully recharged it will
		last over 12 hours of operation.
		100V-240VAC for the charger
	Velocity(유 속)	0 ~ 12m/s
	Display	4 line≠16 English letters LCD back lit, can display
		total flow, flow rate, velocity and
		meter running status etc.
	Units	User Configured (English and Metric);
	Rate	Rate and Velocity Display;
	Totalized	(FWD, NET, REV or BATCH) gallons, ft³,
		barrels, lbs, litters, m³,kg
	Output	4~20mA, Pulse, Relay, RS232C or RS485, options:
		up to 8 GB Data logger, Hart +(4~20mA), Modbus
	Accuracy	÷1.0% of reading at rates >0.5 m/s
		÷0.005 m/s of reading at rates<0.5 m/s
	Sensitivity	Flow Rate: 0.001ft/s (0.0003m/s)
	Repeatability	0.2% of reading
	Security	Keypad lockout, access code enable
	Dimensions and Weight	100*204*34  Weight: <0.6kg
Transducer	Liquid Types Supported	Virtually most any liquid containing less than 2%
		total suspended solids (TSS) or aeration
	Suited Liquid Temperature	Std. Temp. Transducer: -40→~121→
		High Temp. Transducer : -40→~250→
	Dimensions and Weight	S: Size:42*25*25; weight:<0.3kg
		M: Size:60*43*43; weight:<0.6kg
		L: Size:80*53*53; weight:<1.0kg
	Pipe Size	Std M transducer: 40-1000mm
		L transducer: 1000-4570mm
		S transducer: 12-50mm
		K-mode round transducer: 12-50mm
Accessories	Portable Case	Size: 445*290*130; Weight: <3.5kg
	Couplant	Dow Corning 111 or 732 (112 for high temp.)
	Elastic Belts	2 bundles
	Battery Charge	1 pcs
	Data Logger	Optional 512M to 8GB SD card
	Software	(200,000 data logger)
