NEW

Check the quality of your electrical joints with low resistance measurements!

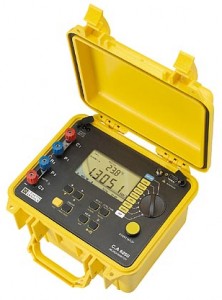

An easy-to-use, high-performance instrument, the C.A 6250 micro-ohmmeter tests the quality of links with precision (resolution of 0.1µΩ) through the use of low resistance measurements.

• 4-wire measurement method, 1µΩ to 2,500Ω (7 calibres, 3 with a 10A current)
• automatic compensation of spurious voltages at input terminals
• 3 measurement modes available depending on the application: inductive, non-inductive and
 automatic
• temperature compensation function for comparative results
• programmable alarms / 1,500-measurement memory capacity / direct printing of measurements
  on standard printer
• large backlit LCD display offering a wide range of symbols and indicators
• power supplied by rechargeable NiMH battery; battery life of 5,000 measurements at 10A
• IP 64: (casing closed) / IP 53 (casing open)
• dimensions: 270 x 250 x 180mm; weight: 4kg

OFFERS A WIDE RANGE OF MEASUREMENTS:
• Earth continuity tests
• Surface and metallization conditions
• Quality of contacts (switches, relays)
• Resistance of cables and windings
• Heating of motors and transformers
