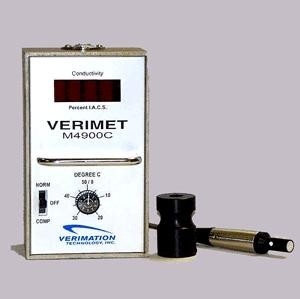

M-4900c

Typical Applications:
•Sorting mixed non-ferrous metals and alloys
•Evaluating material alloy, hardness and uniformity of heat treat
•Measuring absolute conductivity
•Detecting heat damage to aircraft surfaces and structures
•Checking Aluminum alloy for aging
•Testing for proper aluminum

Specifications:
•Size: 6.75" x 3.75" X 2.75" (17.2 X 9.5 x 7.0 cm)
•Weight: 2.5 lbs. 91 kg)
•Penetration depth: 0.050" (1.3 mm)
•Range (I.A.C.S.): 12% to 110%
•Lift-off: 0.025 inch (0.9 mm) max.
•Accuracy:
•+- 0.3% (17% to 62% IACS Aluminum)
•+/-0.5% (Full Range 10% to 110%)
•Resolution: 0.1%
•Power Supply: Rechargeable Nickel Cadmium Batteries w/AC adapter/Battery Charger 115/60 Hz or 220/50 Hz.
•Probes: M216C probe with 42" (107cm) cable
•Readout: Digital-4 Numeral

•구성
•Probe and 42" Cable Assembly
•Carrying Case
•Battery and Charger 220 VAC
